Extract Box

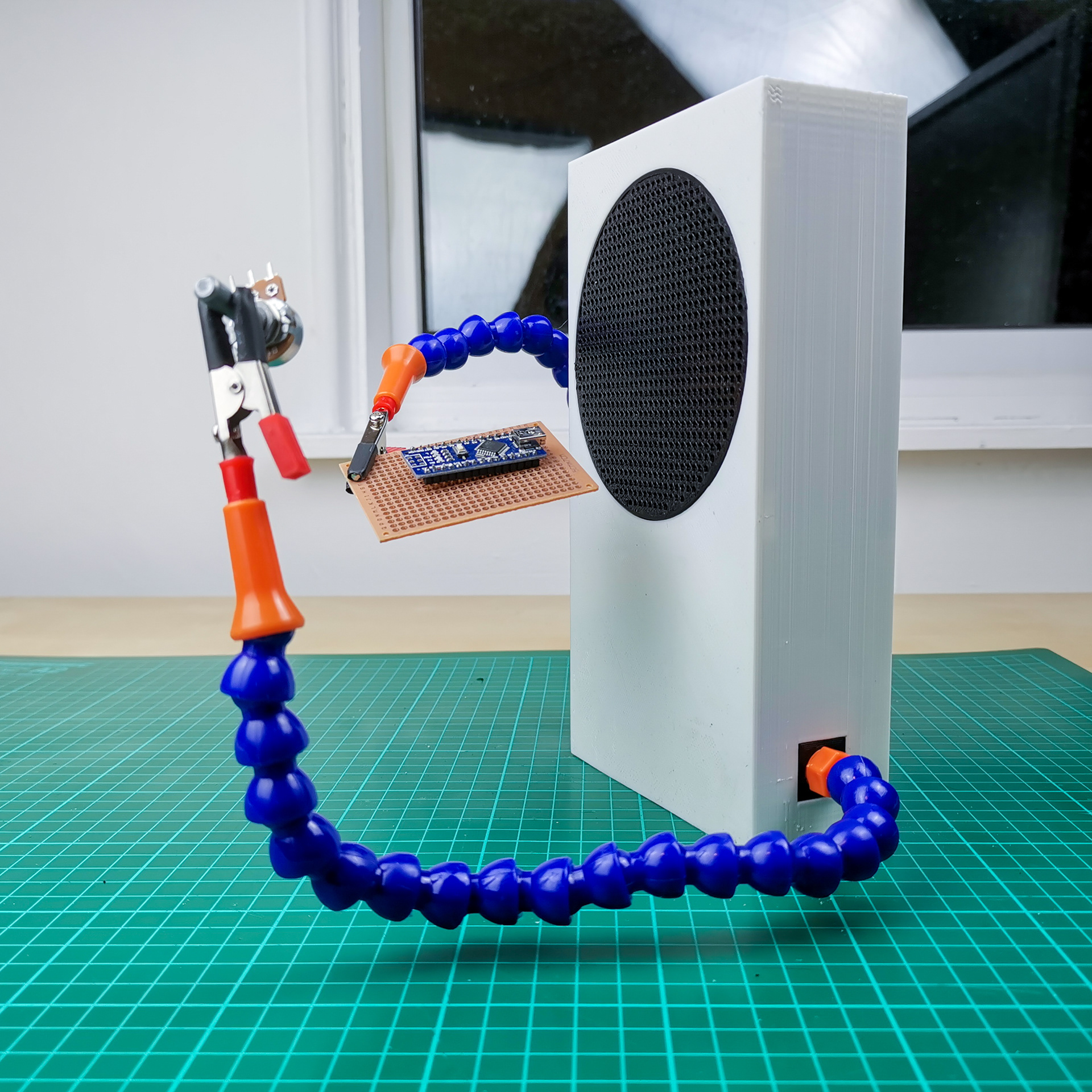

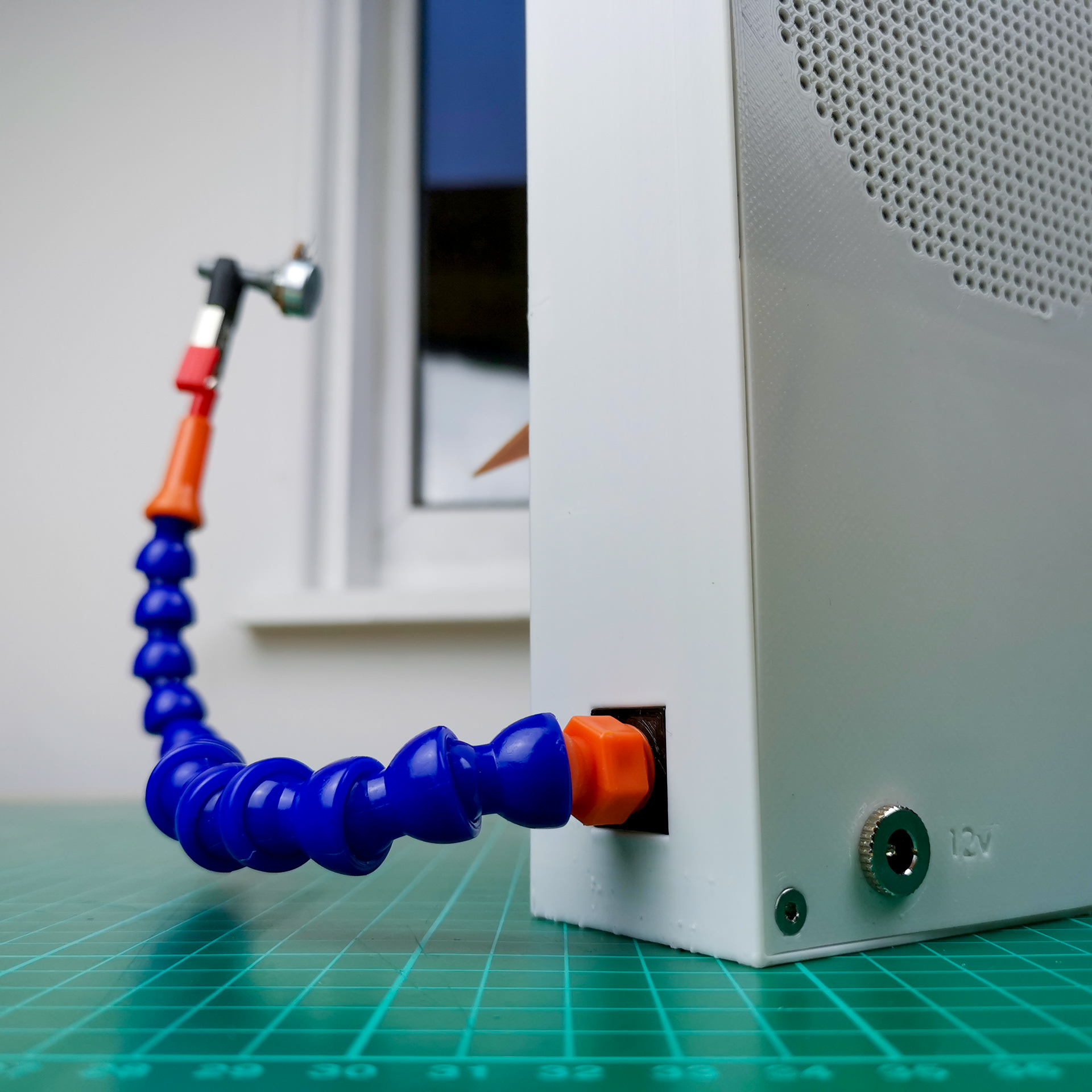

The Extract Box is a fume extractor designed to remove toxic chemicals from the air when soldering. It features a high rpm fan which sucks in fumes through the front grill on the device into a charcoal membrane which neutralises the toxins in the air. There are also threaded inserts on either side of the device which enables users to screw in 'helping hands' which hold electronic components steady while users are soldering.  The sleek, minimal design of the product is heavily inspired by the new Xbox Series X from Microsoft.
Overview
Extract Box
Functional Prototype
Personal Project
2 Days
2020
Product Visualisation

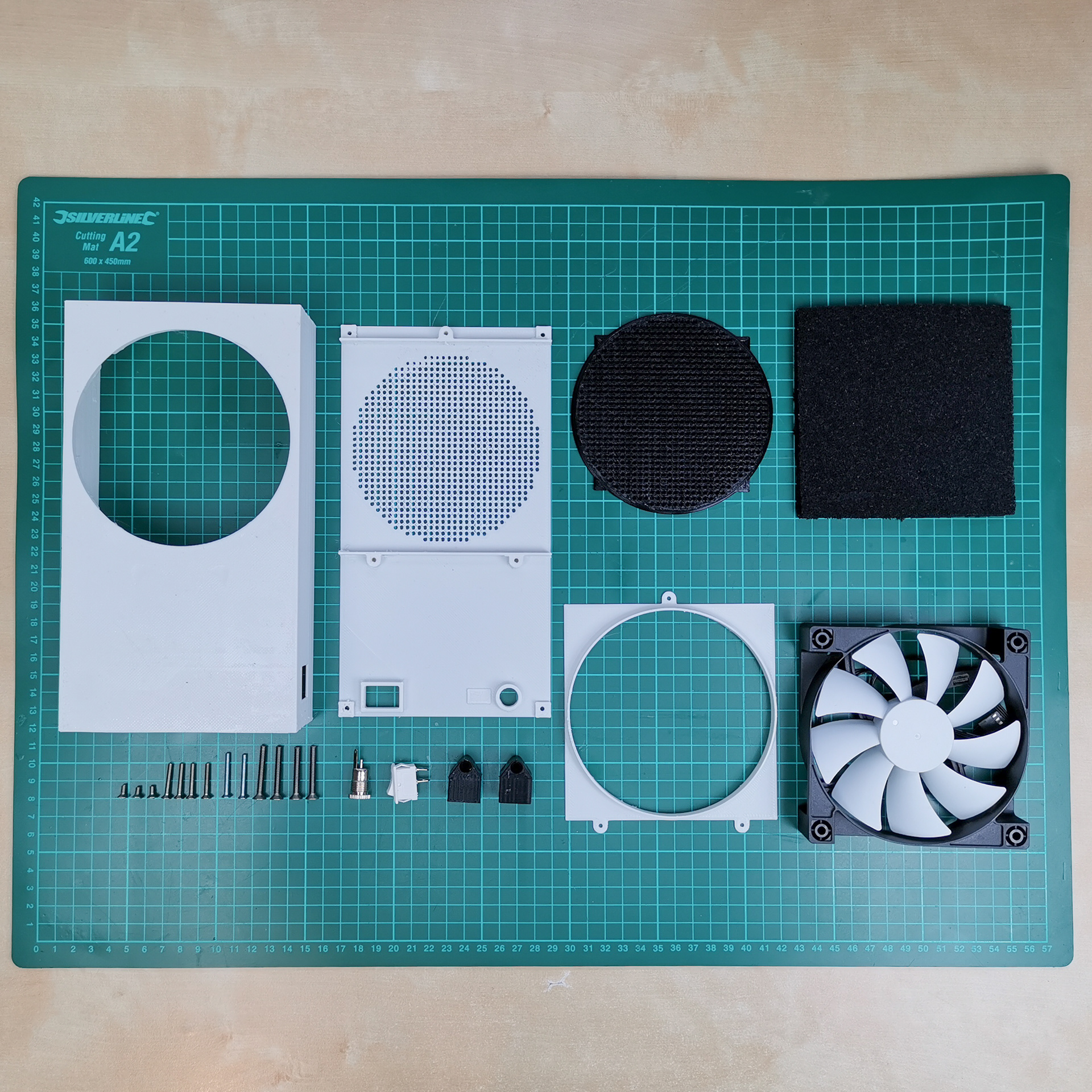

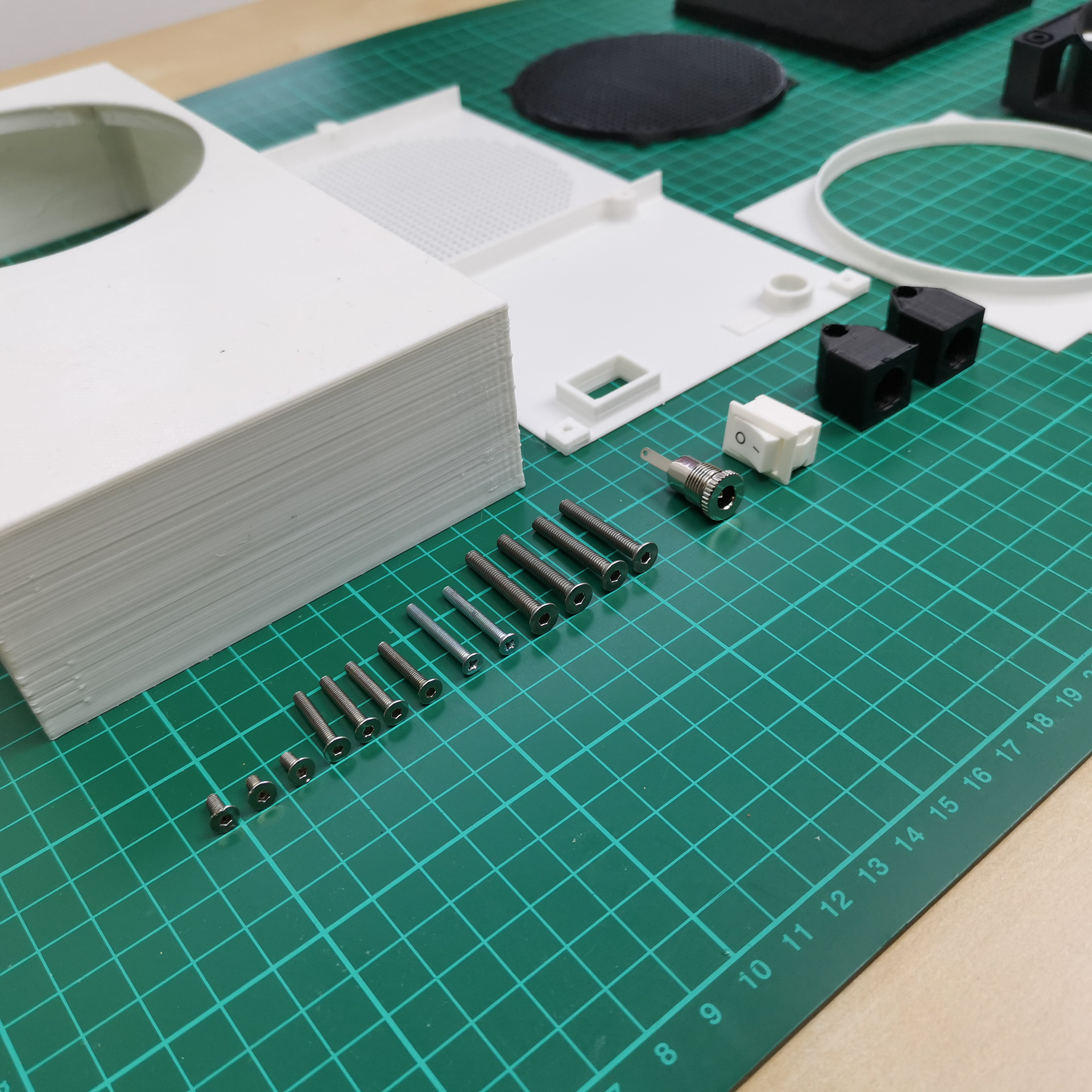

Assembling The Prototype

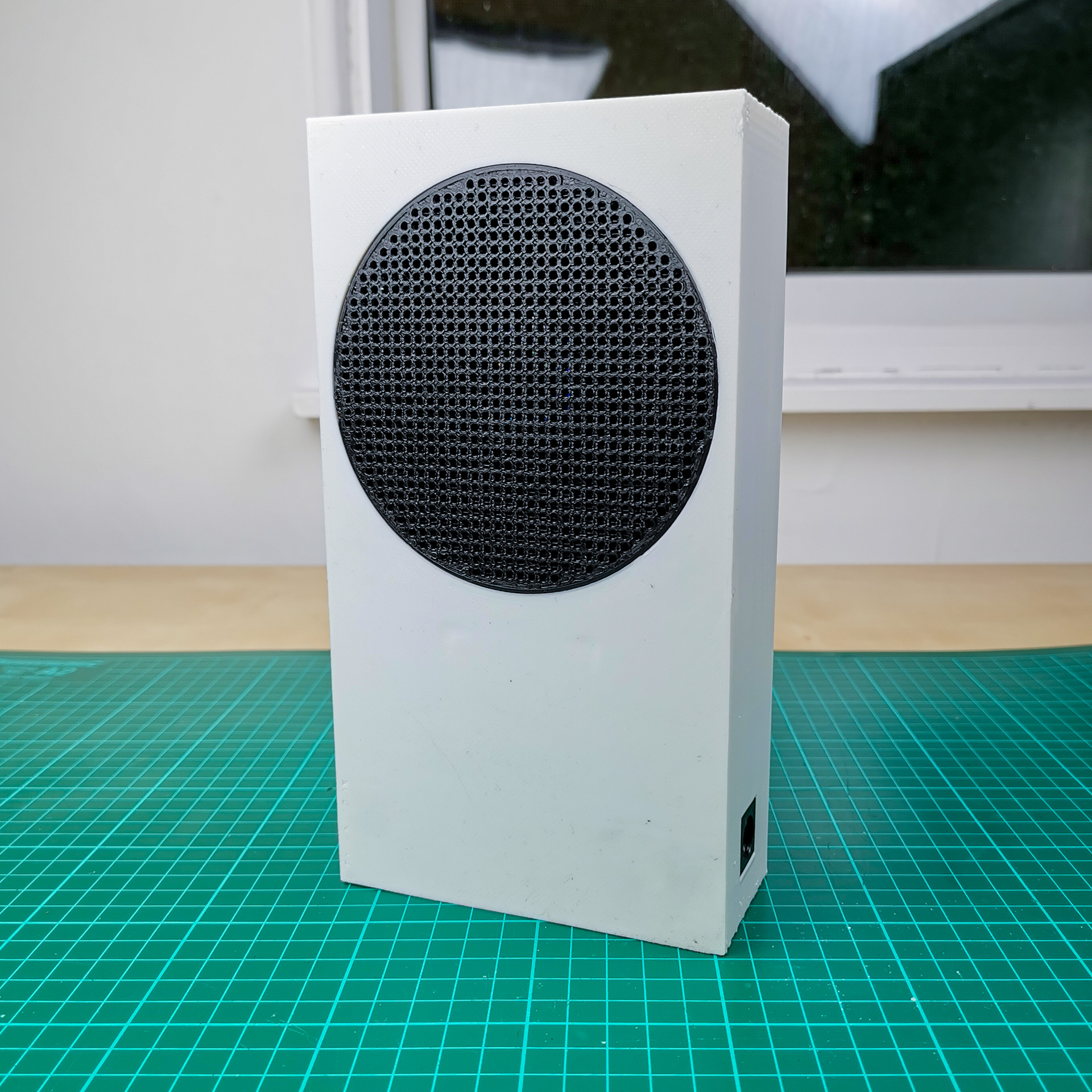

The Finished Prototype
